For GREE R410A/R410A/R32 DC Inverter Variable Frequency Split Heat Pump Electric Room AC System for Household And Hotel Use

You are here: Home » Product Category » Residential AC » Split Type » For GREE R410A/R410A/R32 DC Inverter Variable Frequency Split Heat Pump Electric Room AC System for Household And Hotel Use

For GREE R410A/R410A/R32 DC Inverter Variable Frequency Split Heat Pump Electric Room AC System for Household And Hotel Use

For GREE R410A/R410A/R32 DC Inverter Variable Frequency Split Heat Pump Electric Room AC System for Household And Hotel Use

OEM/ODM

Quantity:
Availability:





Inquire Add to Basket

household split air conditioner DC inverter R410A AC hotel use heat pump AC Variable frequency heat pump AC Gree Fairy WIif Control 7 Fan Speeds Air Conditioner inverter dc ac R410A 220V 12000btu 1hp Cooling and Heating multi split system Variable frequency R410A AC GREE R410A split heat pump AC variable frequency split AC system

Product Description

Not all models are available in all market. Each place has different safety standards. Product requirements 1.Type Split wall -mounted ;Window type ;Portable air conditioner ;Central air-conditioning 2 .Where to use it ? Asia ;Africa ; European ; UK ; Middle East ; Latin America ; American 3. Frequency Fixed : inverter 4. Refrigerant ? R410A . R32 . R290( for portable air conditioner ) 5. Function Cooling ; Cooling and Heating 6. British Thermal Unit ? 9000BTU . 12000btu . 18000btu . 24000 btu . 36000 btu . or others ? 7. Electricity standards ? 220V-240V/60Hz ; 220V-240V/50HZ : 220v 50/60hz : 8 .Quantity ? The above information is convenient for us to quote more accurately .

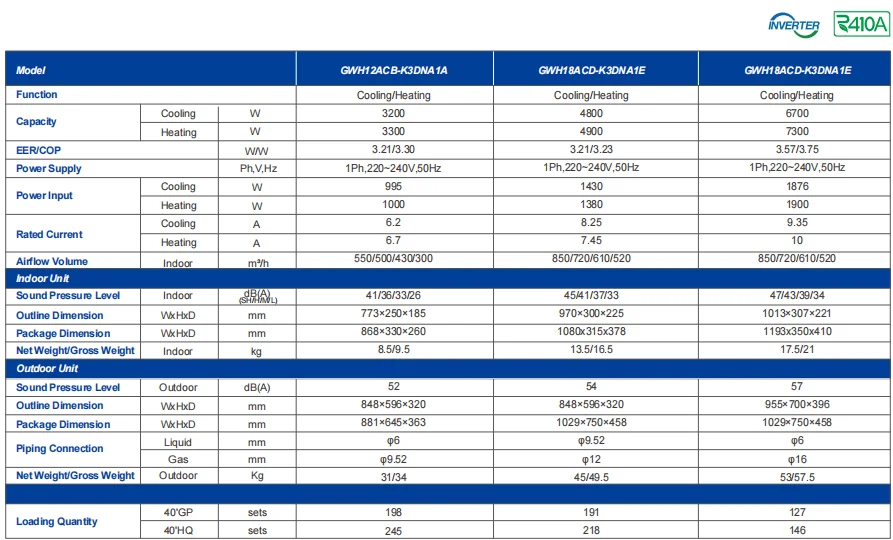

series			Fairy
Capacity(Btu/h)			DC Inverter, R410A
Type			Wall-mounted
Model			GWH12ACB-K3DNA1A	GWH18ACD-K3DNA1E	GWH18ACD-K3DNA1E
Capacity	Cooling	w	3200	4800	6700
	heating	w	3300	4900	7300
EER/COP		W/W	3.21/3.30	3.21/3.23	3.57/3.75
Power Supply		Ph,V,Hz	1Ph,220~240V,50Hz	1Ph,220~240V,50Hz	1Ph,220~240V,50Hz
Power Input	Cooling	w	995	1430	1876
Power Input	heating	w	1000	1380	1900
Rated Current	Cooling	w	6.2	8.25	9.35
Rated Current	heating	w	6.7	7.45	10
Airflow Volume	Indoor	m³/h	550/500/430/300	850/720/610/520	850/720/610/520
Indoor Unit
Sound Pressure Level	Indoor		41/36/33/26	45/41/37/33	47/43/39/34
Outline Dimension	WxHxD	mm	773×250×185	970×300×225	1013×307×221
Package Dimension	WxHxD	mm	868×330×260	1080x315x378	1193x350x410
Net Weight/Gross Weight	Indoor	kg	8.5/9.5	13.5/16.5	17.5/21
Outdoor Unit
Sound Pressure Level	Outdoor	dB(A)	52	54	57
Outline Dimension	WxHxD	mm	848×596×320	848×596×320	955×700×396
Package Dimension	WxHxD	mm	881×645×363	1029×750×458	1029×750×458
Piping Connection	Liquid	mm	φ6	φ9.52	φ6
Piping Connection	Gas	mm	φ9.52	φ12	φ16
Net Weight/Gross Weight	Outdoor	kg	31/34	45/49.5	53/57.5

Loading Quantity	40'GP	sets	198	191	127
Loading Quantity	40'HQ	sets	245	218	146
