Gree DC Inverter GMV5 Mini is a flexible solution for central air conditioning systems that are suitable for different types of buildings.

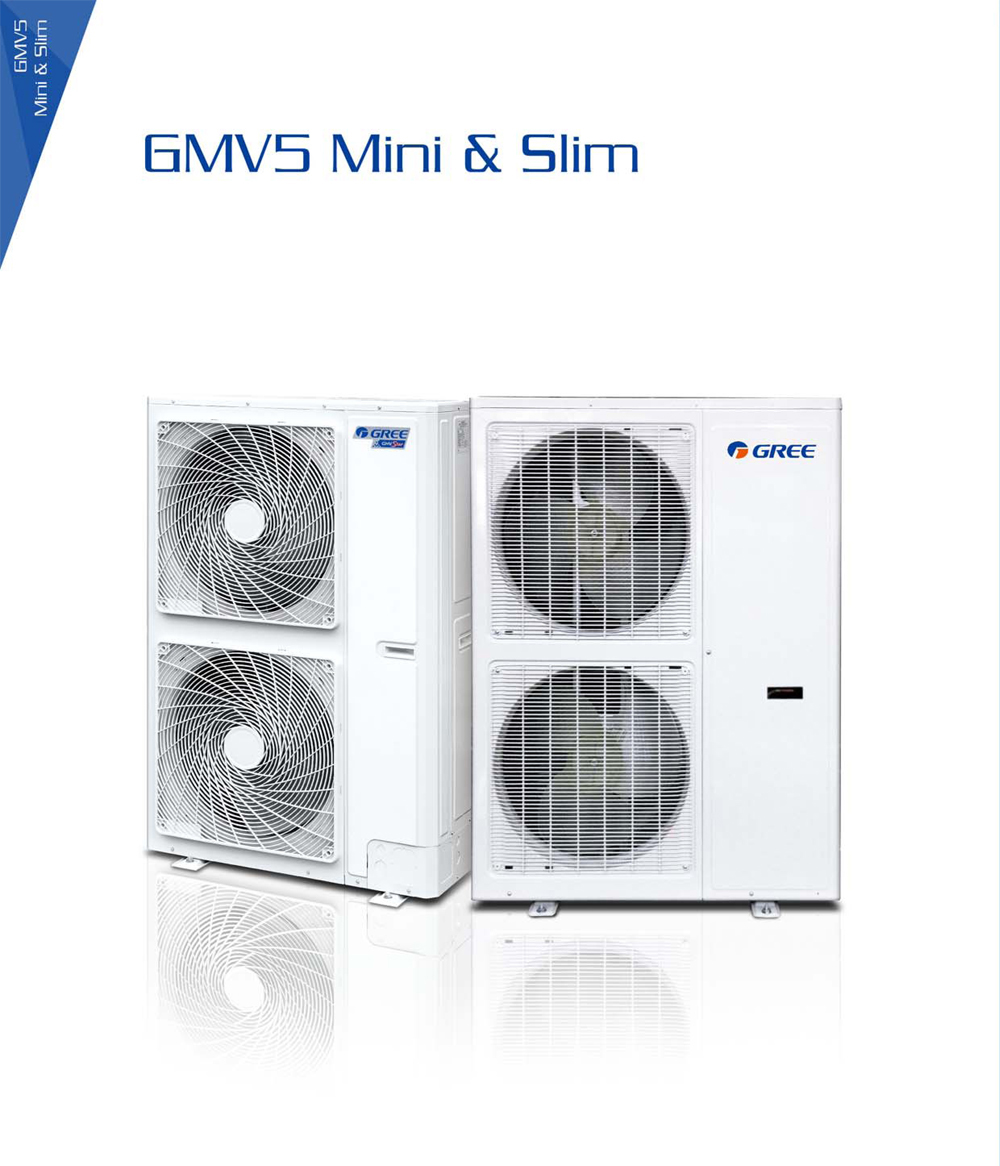

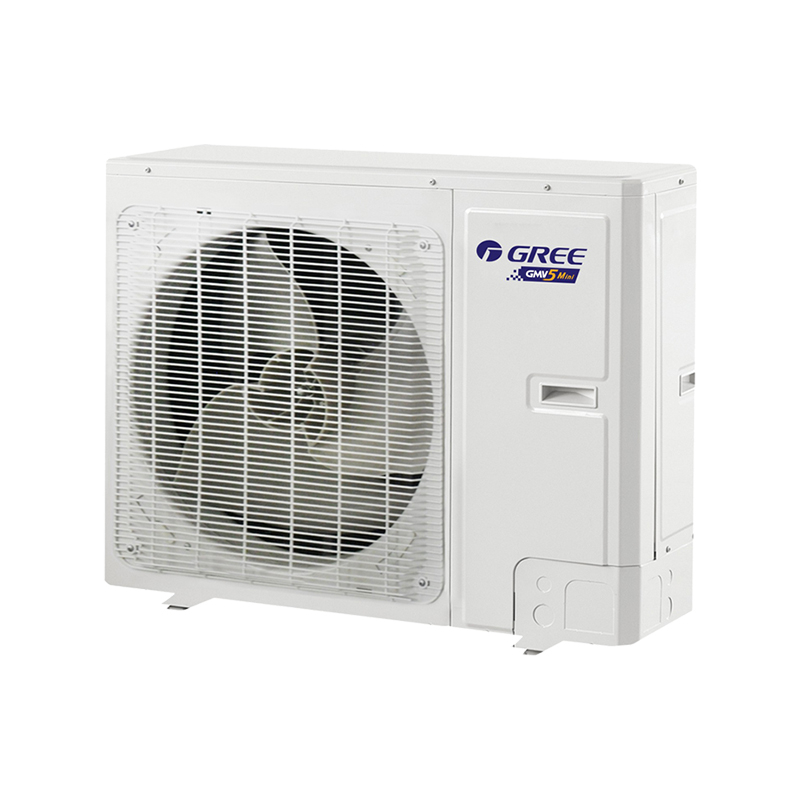

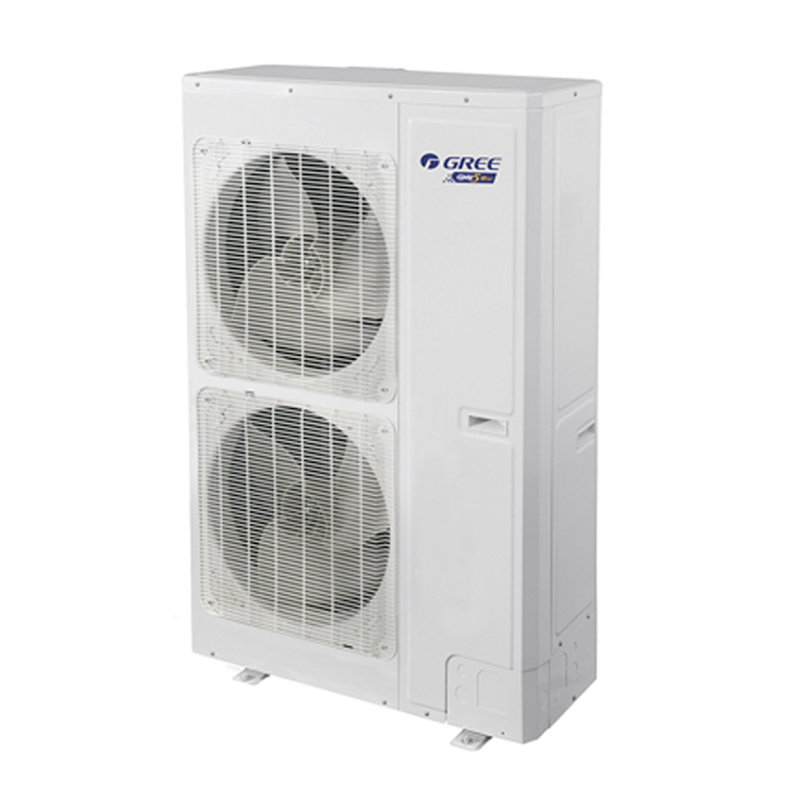

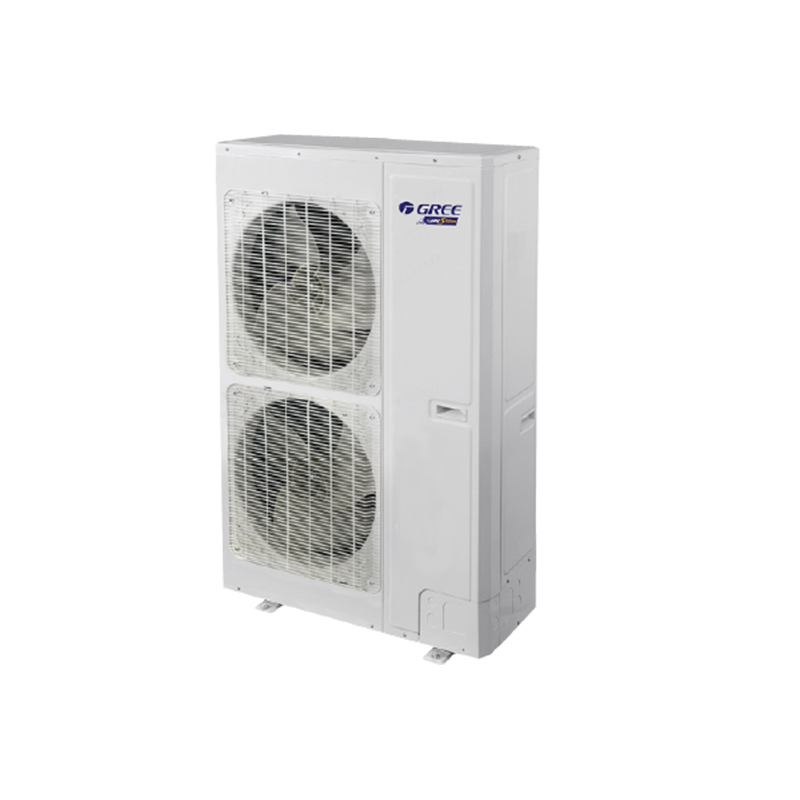

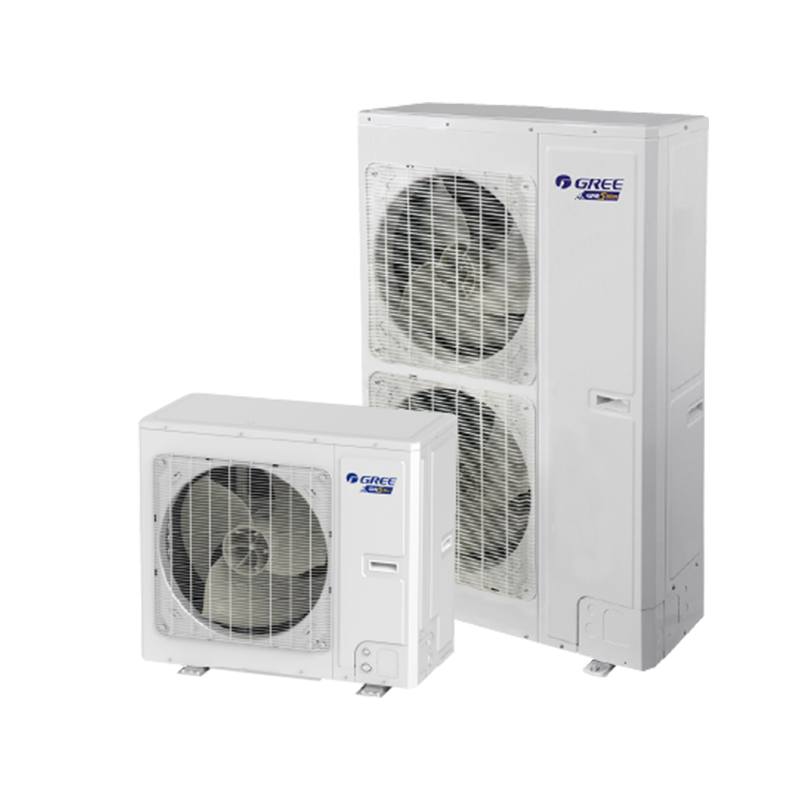

The compact design of the outdoor unit makes it easy to install, it can have a single 8kW fan or a double 16kW fan. In addition, the outdoor unit can be connected to a wide range of indoor units.
The GMV5 generation uses high-performance compressors, which greatly improve energy efficiency while maintaining quiet noise levels during operation. The compressors are designed to operate normally over a wide range of temperature ranges, thus reducing power loss and maintaining a high level of performance.

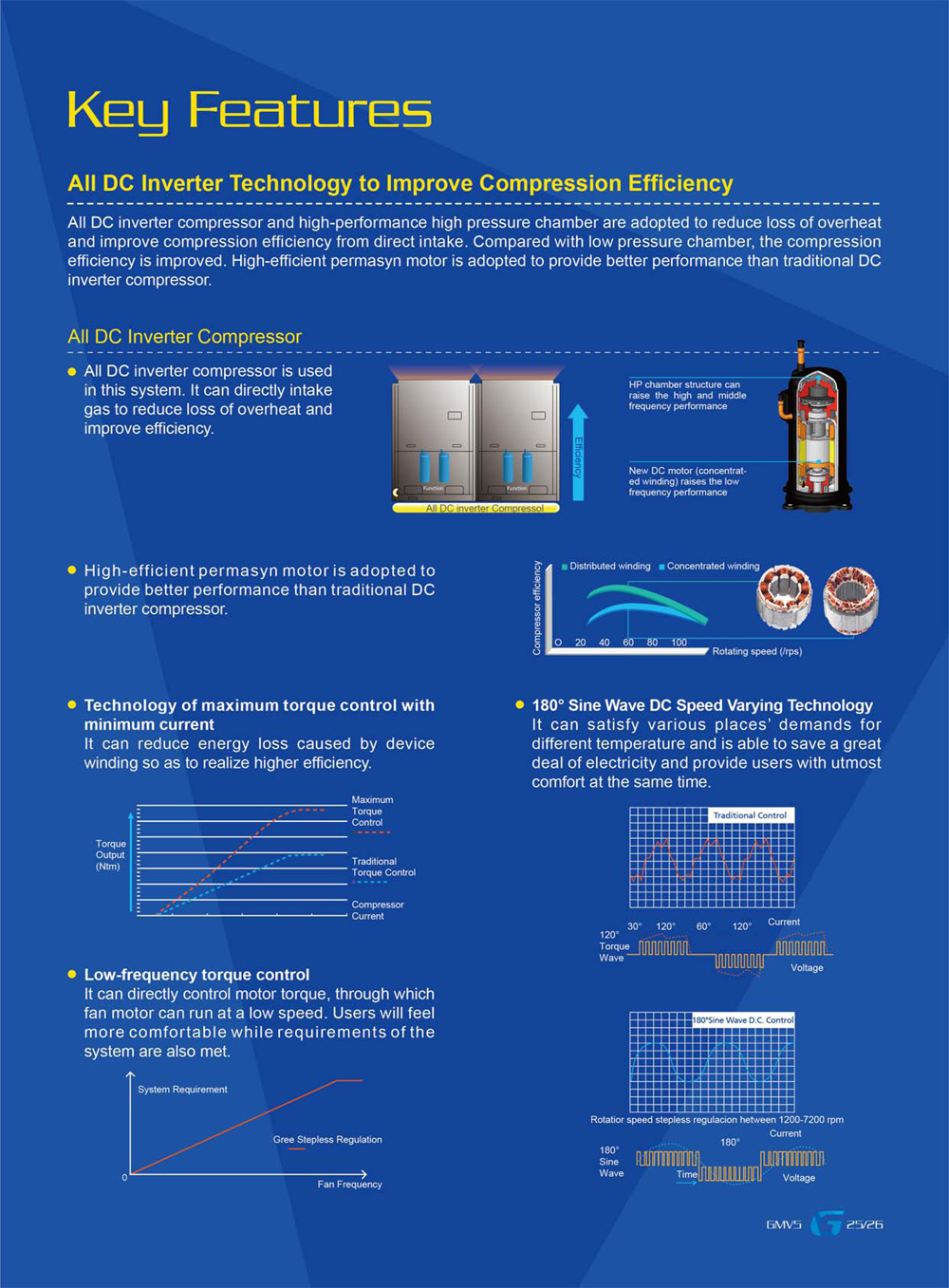

The ALL DC Inverter compressor and the high pressure chamber are adapted to reduce overheating and improve compression efficiency. Compared with the low-pressure chamber, the compression efficiency is improved. The permasyn high-efficiency motor is adapted to provide better performance than traditional DC inverter compressors.

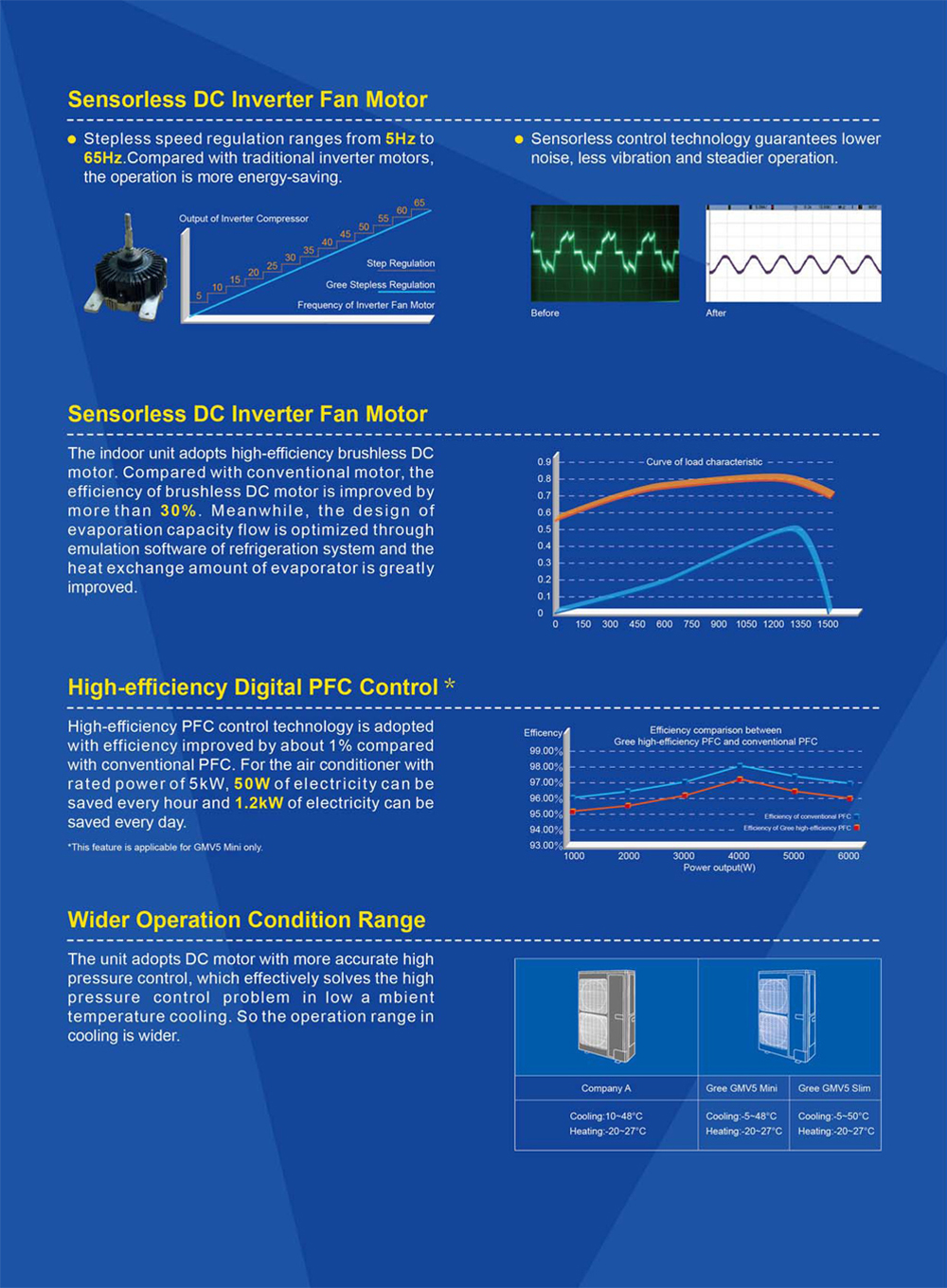

The speed adjustment is done without steps and can vary between 5Hz and 65Hz. Compared to traditional motors, this operation helps to save electricity.
Maximum motor torque control technology with minimal power consumption to further reduce operating costs.
The cooling or heating mode can be deactivated during a season to avoid operating errors due to the conflict between the two operating modes.

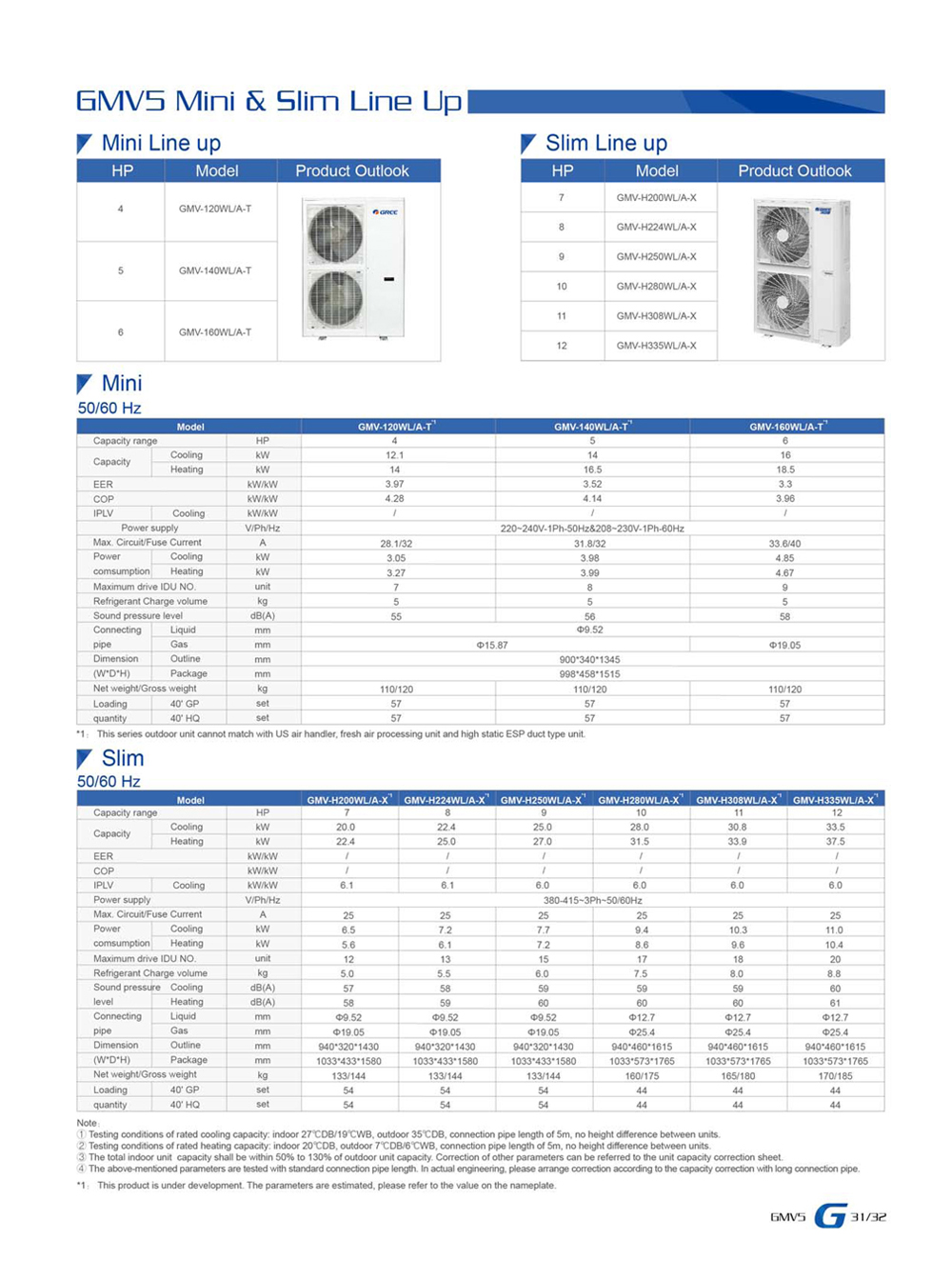

The maximum capacity generated by a single outdoor unit is 22 HP, and by combining several outdoor units the maximum capacity can reach 88 HP.
The GMV5 can support a combination of 4 outdoor units that can be connected with 80 indoor units. It is especially applicable for the construction of office buildings or hotels.
When a unit needs to be repaired, it can be turned off without affecting the operation of the entire system.
