The Versati III Split has a power range from 4 to 9.5 kW and supports hot water functions for the underfloor heating system, radiators or fan coils, and a water tank for domestic hot water can also be added.

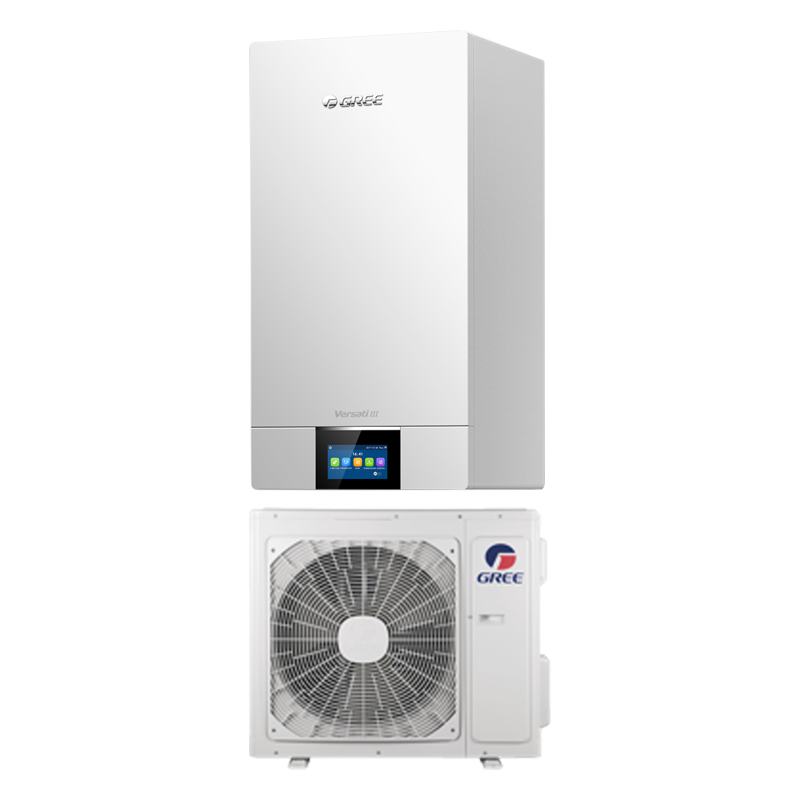

Split system with hydraulic kit
• The Split version consists of the production unit (external) and
the hydraulic module (internal unit).
• If a buffer tank or
water tank is required, it will be installed independently.
• Direct connection to DHW systems, underfloor heating
, fan coils and heating systems,
water tanks, solar kits, gas boilers, etc.
• The Split version will be chosen, for example, when
the available space in the room is limited and the tank must be
located elsewhere.
Commissioning made easy
• Underfloor heating system start function
• Underfloor heating system emptying function
High efficiency
Thanks to the R32 refrigerant and an ultra-efficient two-stage compressor, the devices have a SEER of up to 5.
State-of-the-art components
• The Versati III includes a Wilo Inverter pump, an Alfa Laval and Danfoss plate
heat exchanger, a patented two-stage injection
compressor for GREE and a
BDLC DC Inverter fan motor.
• The two-stage compressor and control valve produce
heat by injection, increasing the temperature of the supplied water with
greater precision and keeping the energy at very
low temperatures.
Other functions
• Dual temperature sensor.
• The 80°C disinfection function ensures the
elimination of bacteria.
• The remote management interface allows the unit to be managed
via Modbus and integrated into a BMS system.
• Operating modes: heating to 8 degrees, automatic mode,
silent mode and underfloor heating.
