All Core Motor and Engine Components for GREE U-Match DC Inverter Chiller Belong to VRV Air Conditioner Systems

You are here: Home » Product Category » Light Commercial AC » U-MATCH » All Core Motor and Engine Components for GREE U-Match DC Inverter Chiller Belong to VRV Air Conditioner Systems

All Core Motor and Engine Components for GREE U-Match DC Inverter Chiller Belong to VRV Air Conditioner Systems

All Core Motor and Engine Components for GREE U-Match DC Inverter Chiller Belong to VRV Air Conditioner Systems

Quantity:
Availability:





Inquire Add to Basket

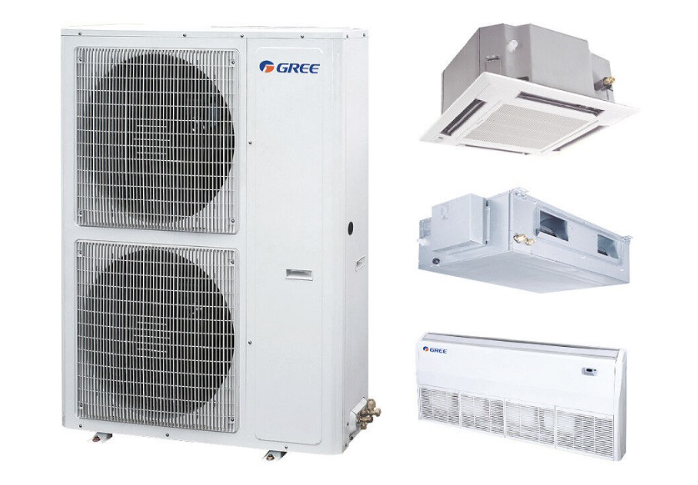

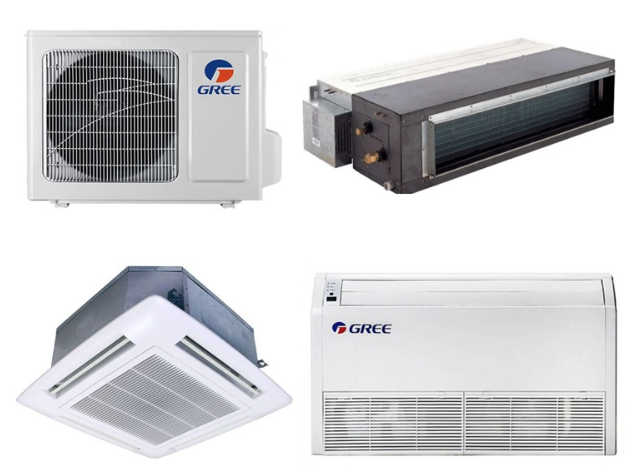

GREE U-Match DC Inverter Chiller mini vrf multi split air conditionermini vrf multi split air conditioner mini vrf multi split air conditioner

Product Description

Specification

item	value
Place of Origin	China
Brand Name	GREE
Model Number	GUD35W/A-S
Power (W)	220
Power Type	AC
After-sales Service Provided	Free spare parts
Warranty	1 Year
Type	Split Wall Mounted Air Conditioners
Cooling/Heating	Cooling/Heating
Application	Commercial, Garage, Hotel, Household
Power Source	Electric
Remote Control	Yes
Maximum Airflow Rate	650/600/510/450
App-Controlled	NO
Recommended Room Size（square feet）	300-500
Fixed Frequency/Variable Frequency	Variable frequency

Model	outdoor unit			GUD35W/A-S			GUD50W/A-S
Model	Indoor unit			Duct,GUD35P/A-S	Cassette.GUD35T/A-S	Floor Ceiling , GUD35ZD/A-S	Duct , GUD50PS/A-S	Cassette , GUD50T/A-S	Floor Ceiling ,GUD50ZD/A-S
Electrical Data	Power supply		Ph,V,Hz	1Ph,220~240V,50/60Hz	1Ph,220~240V,50/60Hz	1Ph,220~240V,50/60Hz	1Ph,220~240V,50/60Hz	1Ph,220~240V,50/60Hz	1Ph,220~240V,50/60Hz
	Power input	Cooling	KM	0.050	0.030	0.030	0.070	0.035	0.055
	Power input	heating	KM	0.050	0.030	0.030	0.070	0.035	0.055
Sound Pressure Level (H/M/L)*			dB (A)	37/35/34	37/35/31	36/32/28	39/37/35	39/35/31	42/39/36
Refrigerant	Type			R410A	R410A	R410A	R410A	R410A	R410A
Air Flow Volume(rated EXP)			CFM	383/353/300/265	382/341/282/235	383/359/312/271	559/518/500/441	412/341/282/235	500/471/412/353
Air Flow Volume(rated EXP)			m3/h	650/600/510/450	650/580/480/400	650/610/530/460	950/880/850/750	700/580/480/400	850/800/700/600
Fan Motor	Drive Type			Direct	Direct	Direct	Direct	Direct	Direct
Drainage Connection Size			mm	φ26×2.50	φ25×1.50	φ17×1.50	φ26×2.50	φ25×1.50	φ17×1.50
Dimension	Outline(W×D×H)		mm	700×450×200	570×570×265	870×665×235	1000×450×200	570×570×265	870×665×235
Dimension	Package(W×D×H)		mm	1008×568×275	698×653×295	1033×770×300	1308×568×275	698×653×295	1033×770×300
Weight	Net/Gross		kg	19.0/23.0	17.0/22.0	25.0/30.0	26.0/31.0	17.0/22.0	26.0/31.0
Loading quantity (within panel)			20'GP	176	168	112	136	168	112
			40'GP	36	378	238	288	378	238
			40'HQ	414	432	272	324	432	272
Panel	Outline(W×D×H)		mm		620×620×47.5			620×620×47.5
	Package(W×D×H)		mm		701×701×125			701×701×125
	Net Weight		kg		4.5			4.5

Model	outdoor unit			GUD71W/A1-S			GUD100W/A-S
Model	Indoor unit			DUCT , GUD71PS/A1-S	Cassette ,GUD71T/A1-S	Floor Ceiling, GUD71ZD/A1-S	Duct ,GUD100PHS/A-S	Cassette, GUD100T/A-S	Floor Ceiling ,GUD100ZD/A-S
Electrical Data	Power supply		Ph,V,Hz	1Ph,220~240V,50/60Hz	1Ph,220~240V,50/60Hz	1Ph,220~240V,50/60Hz	1Ph,220~240V,50/60Hz	1Ph,220~240V,50/60Hz	1Ph,220~240V,50/60Hz
	Power input	Cooling	KM	0.085	0.055	0.085	0.180	0.100	0.110
	Power input	heating	KM	0.085	0.055	0.085	0.180	0.100	0.110
Sound Pressure Level (H/M/L)*			dB (A)	42/40/38	45/41/39	48/45/43	41/39/37	48/46/42	47/45/43
Refrigerant	Type			R410A	R410A	R410A	R410A	R410A	R410A
Air Flow Volume(rated EXP)			CFM	617/588/529/470	735/674/559/500	617/588/500/470	1059/942/824/706	883/853/795/706	942/883/824/706
Air Flow Volume(rated EXP)			m3/h	1050/1000/900/800	1250/1150/950/850	1050/1000/850/800	1800/1600/1400/1200	1500/1450/1350/1200	1600/1500/1400/1200
Fan Motor	Drive Type			Direct	Direct	Direct	Direct	Direct	Direct
Drainage Connection Size			mm	φ26×2.50	φ25×1.50	φ17×1.50	φ26×2.50	φ25×1.5	φ17×1.50
Dimension	Outline(W×D×H)		mm	1000×450×200	840×840×200	870×665×235	1000×700×300	840×840×240	1200×665×235
Dimension	Package(W×D×H)		mm	1308×568×275	943×923×245	1033×770×300	1205×813×360	963×963×325	1363×770×300
Weight	Net/Gross		kg	26.0/31.0	23.0/30.0	26.0/31.0	41.0/47.0	31.0/38.0	32.0/38.0
Loading quantity (within panel)			20'GP	136	108	112	66	84	84
			40'GP	288	216	238	138	168	175
			40'HQ	324	240	272	161	192	200
Panel	Outline(W×D×H)		mm		950×950×52			950×950×52
	Package(W×D×H)		mm		1033×1038×112			1033×1038×112
	Net Weight		kg		9.5			9.5

Company Profile

Beijing Jiayi Jiaxin technology and Trade Co., Ltd. was founded in 2001. The company is mainly engaged in Gree brand air conditioner, water heater, air purifier, Kinghome refrigerator, Tosot small household appliances and other products. Has 20 years of air conditioning, air water heater, air heat pump unit sales, design, installation, transformation of construction experience. Customers all over the world, overseas reputation . In the 20 years of development, Beijing Jiayi Jiaxin technology and Trade Co., Ltd. has fully understood the market demand by continuously improving its own technical strength. We have established a good image of the company with the concept of good faith service to users and continuous improvement of technology. Have a group of skilled installation personnel, sales personnel and technical service personnel. We pay attention to credit, abide by the contract, ensure the quality of products, and win the trust of our customers with the principle of multi variety management characteristics and small profit and quick turnover. Gree Electric products are exported to more than 100 countries in Asia, Africa, Europe, America and Oceania, and are highly praised by overseas users. "Good air conditioning, made by Gree", I hope made in China will bring you a better comfortable experience.
