Electric Air Source Heat Pump Water Heater Air-to-air Heat Pump for Outdoor Household Hot Water for

Product Description

Name of Commodity	Air Source Heat Pump
After-sales Service Provided	Free spare parts
Warranty	1 Year
Application	Hotel, Commercial, Household
Power Source	Electric
Storage / Tankless	Instant / Tankless
Place of Origin	Zhuhai,China
Brand Name	GREE
Model Number	KFRS-40ZMRe/NaB2S
Power Supply	3N,380-415V,50 Hz
Heating capacity KW	10-100kw
Rated power KW	10
Maximum power KW	13
Noise value Db(A)	≤67
Dimensions (width * depth * height)	9308001605 mm
Outlet water temperature ℃	35~70
Refrigerant	R134A
Type	Direct Heating Type
Running Ambient Temperature ℃	-26~46

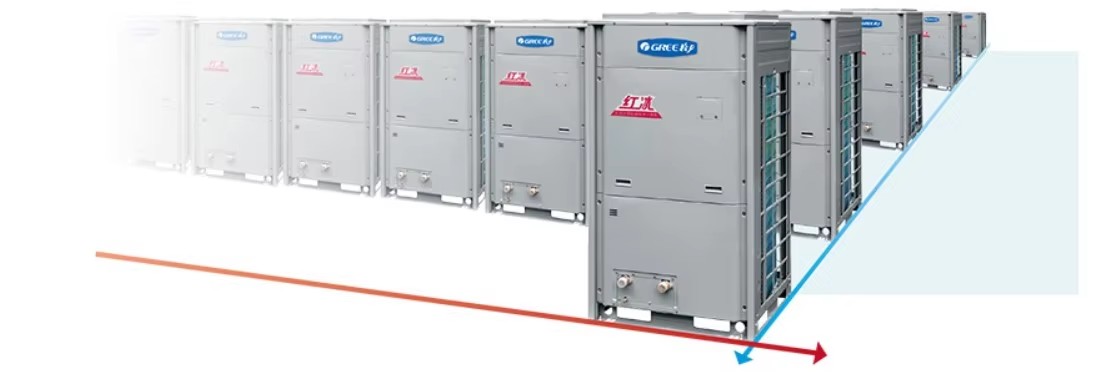

Floor heating hot water units

Integrating the ground heating function and hot water function, its heat pump principle and low-temperature energy-saving characteristics can realize the replacement of boilers and other heating equipment in heating projects, solve the "haze" phenomenon caused by coal combustion, and make the sky blue and the earth green“ The "red ice" floor heating and hot water all-in-one machine is divided into single machine series and modular series. The air energy heat pump hot water unit uses the heat pump principle to consume part of the electric energy as compensation, obtains heat from the low-grade energy (low-temperature air) of the surrounding environment through the thermal cycle, and transmits it to the condenser through the compressor to release the high-temperature heat source for generating hot water. The ground heating hot water unit is further developed on the basis of air energy heat pump hot water unit. Compared with the ground heating mode, it has higher reliability and more reasonable design.

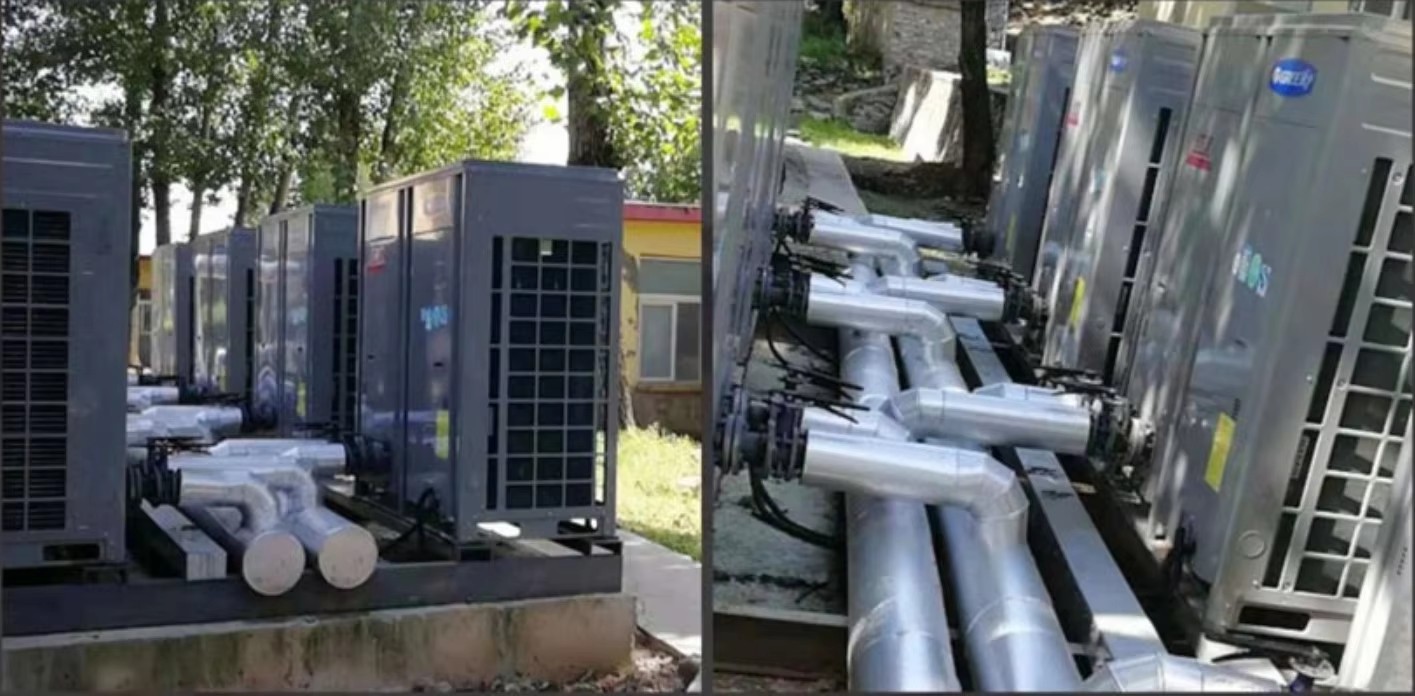

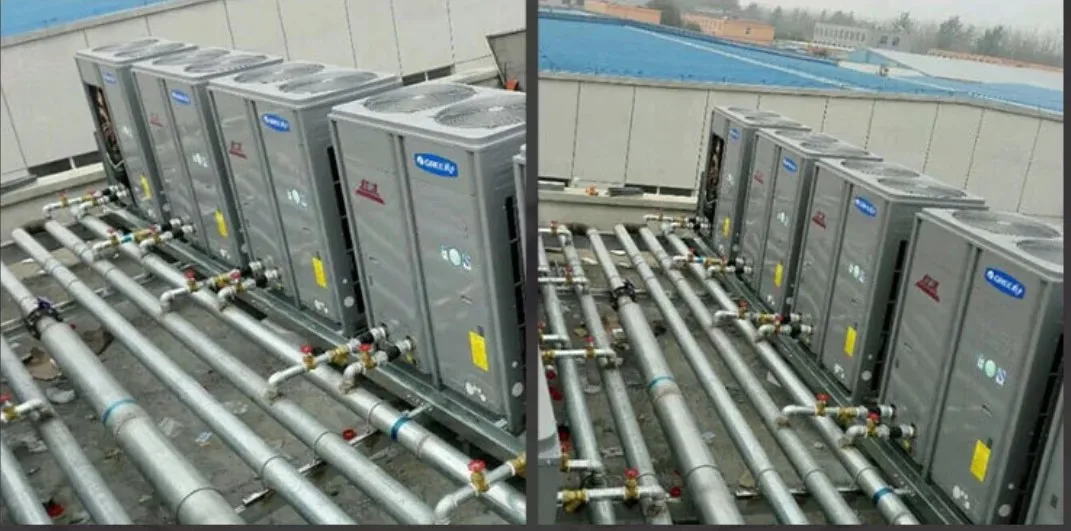

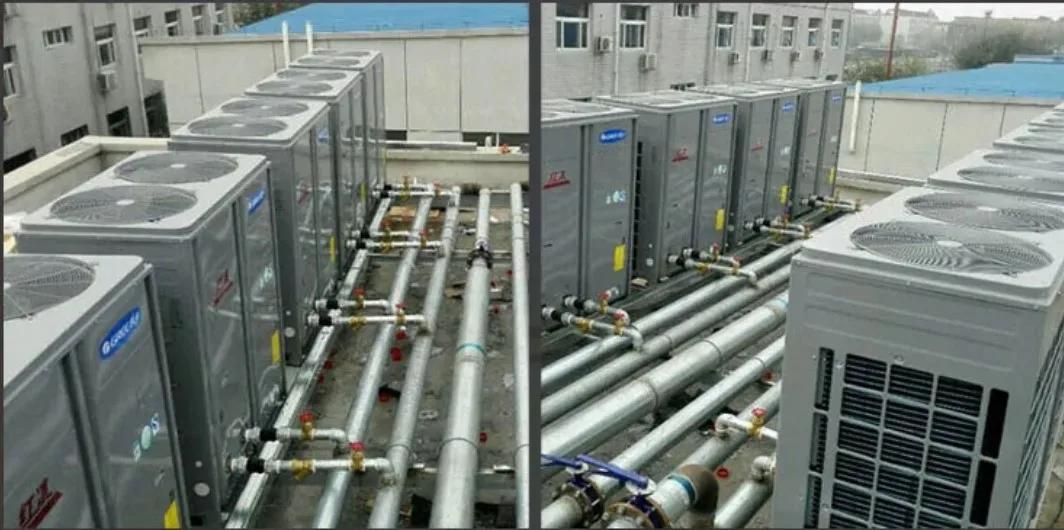

Floor heating hot water units are widely used in domestic hot water or floor heating projects of large and small commercial and civil buildings, such as factories, hotels, restaurants, hospitals, beauty salons, laundries, bath centers, apartments, office buildings and other buildings.

air source water heater features

Instant hot water Intelligent water return ensures that users have hot water when they turn on the faucet, which is convenient and comfortable. No waiting, no waste, enjoy the comfortable hot water of star hotels.

air source water heater features

Automatic cleaning, clean and healthy By using the high-temperature hot water above 60 ℃, Legionella can be eliminated through the automatic cleaning function and the breeding of bacteria in the waterway system can be inhibited; It can also slow down the reduction of heat exchange efficiency caused by scaling through the automatic cleaning function after adding descaling agent and bactericide. Users are safe to use and the system runs more reliably.

heat pump

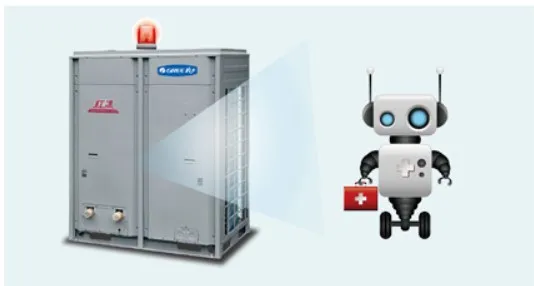

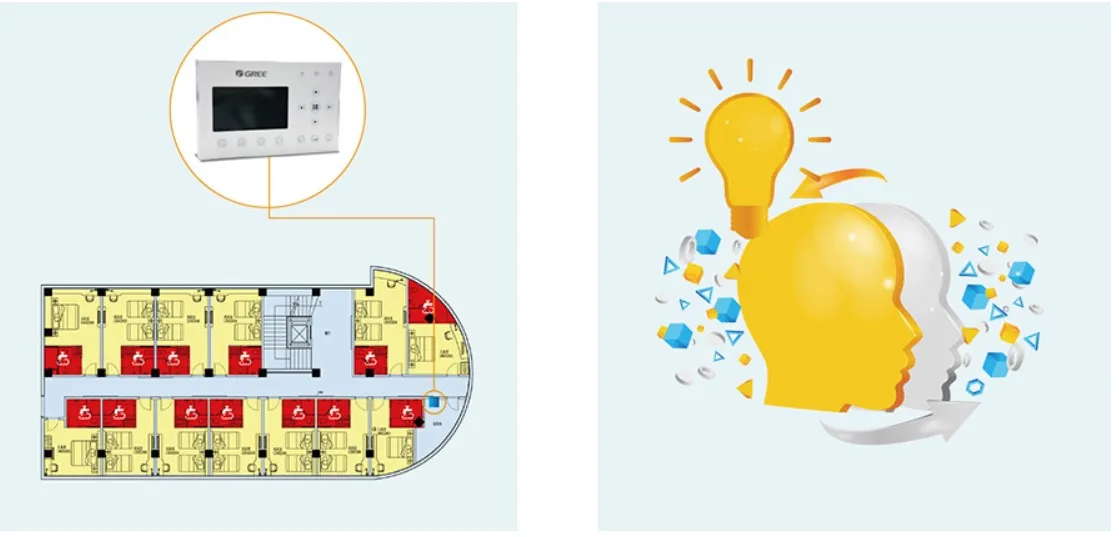

Microcomputer control, fault self diagnosis The unit has a set of advanced microcomputer control system with perfect protection function; At the same time, it has a powerful fault self diagnosis function to ensure the reliable and efficient operation of the unit and meet the water demand of users to the greatest extent.

High efficiency motor Optimized internal configuration design can greatly reduce mechanical loss and reduce noise and heat. High efficiency axial flow blade The red ice series Gree air source heat pump hot water unit adopts CFD full optimization simulation design to make the blade edge curvature more reasonable and perfectly match with the motor. New diversion noise reduction design CFD is used for simulation, analysis and optimization to improve air volume, efficiency and noise reduction. The noise of the whole machine is reduced by 3 ~ 5dB (a) compared with the conventional diversion design. Pipeline simulation optimization technology The internationally famous simulation software ANSYS is used to analyze and optimize the modal and statics of the pipeline to ensure that the unit has the most reasonable pipeline design scheme. Exhaust control technology Hongbing series Gree hot water unit uses PID control technology to cooperate with the special scroll compressor for intermediate liquid spraying hot water, so as to keep the exhaust temperature of the compressor within the allowable range, improve the service life of the compressor, and operate stably even in cold winter. "Low temperature heat pump type" scroll compressor The world-famous brand "low temperature heat pump type" scroll compressor is specially optimized for the motor and scroll plate in low temperature environment, which can withstand higher compression ratio and enable the unit to operate efficiently and stably under extremely cold conditions in the north. The unique low-temperature spray design greatly improves the reliability of the unit in low-temperature environment and makes the service life of the compressor longer. The commercial air energy machine can produce hot water at - 26 ℃ ultra-low temperature. At the same time, it is reliable, stable, efficient and energy-saving.

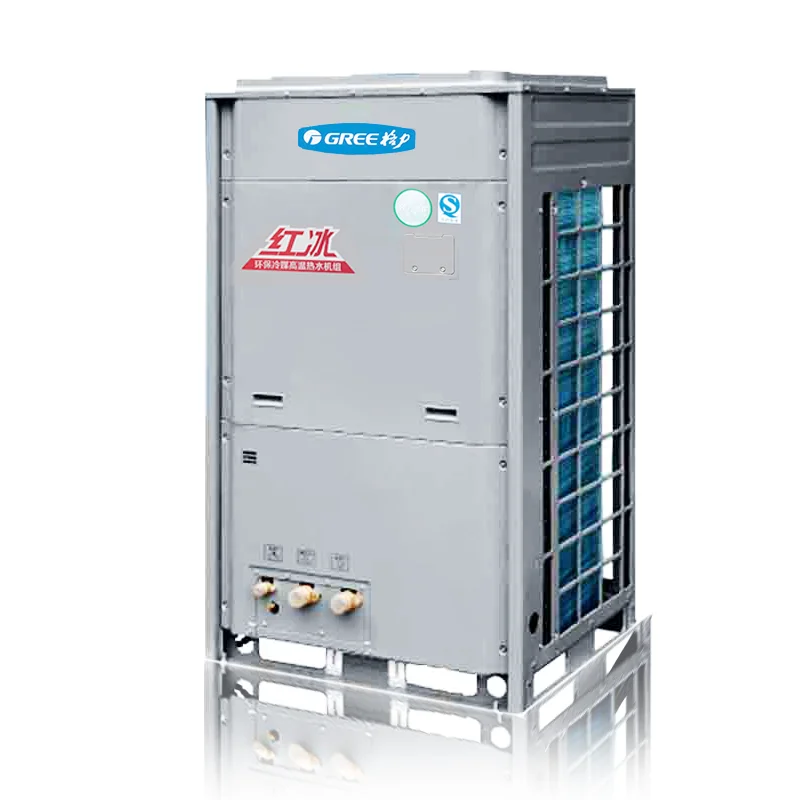

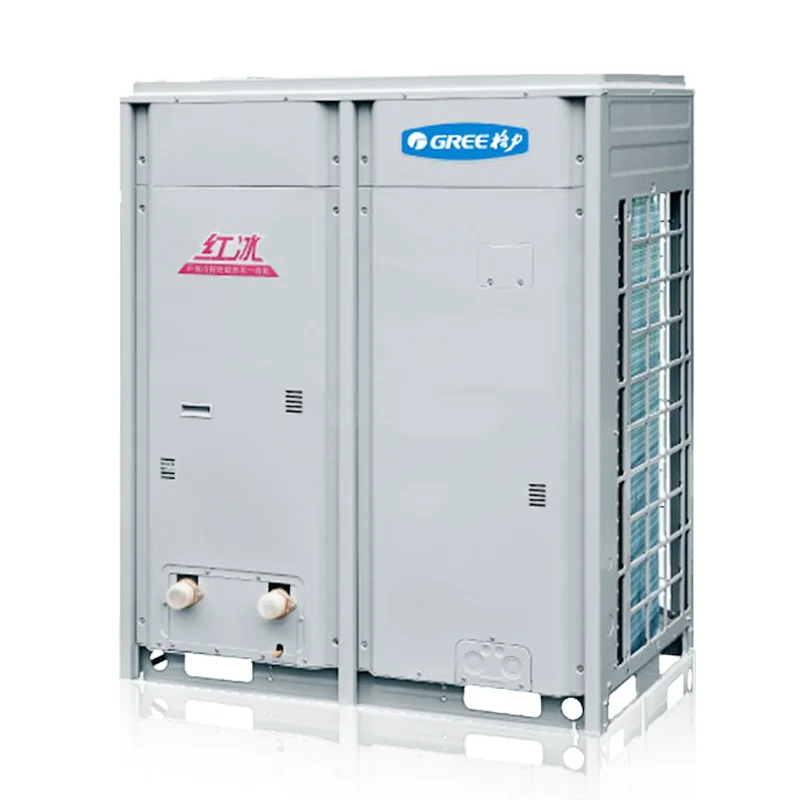

Introduction of air source heat pump hot water unit of Hongbing series Gree hot water unit

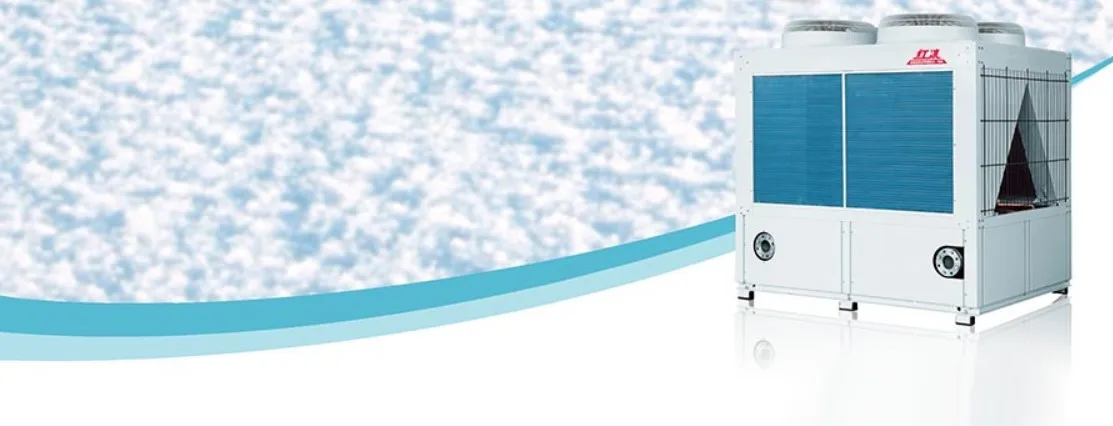

Break through the severe cold and produce hot water at - 26 ℃ ultra-low temperature intelligent control system Perfect multi-functional control system, self-developed microcomputer control board, all-round intelligent management. High strength rust resistant shell Hongbing series Gree air source heat pump hot water unit adopts high-strength anti rust shell, which is resistant to damp heat, salt fog, weather and high-efficiency anti rust. Casing heat exchanger The inner pipe with spiral groove corrugated structure has the ability of self descaling and longer service life（ Kfrs-160smre unit (shell and tube heat exchanger) High precision electronic expansion valve 480 level pulse regulation, combined with PID control technology, keeps the system running under the best performance. Super large finned tube heat exchanger High efficiency heat exchange internally threaded pipe increases the refrigerant heat exchange area, resulting in greater heat exchange and higher heat exchange efficiency. Unique hydrophilic window opening aluminum foil Hongbing series Gree hot water unit has good anti-corrosion performance and eliminates the generation of "water bridge".

Swimmimg Pool co2 heat pump water heaters

Powerful and comfortable Heating engineeringHongbing series Gree hot water unit has higher heating capacity and energy efficiency ratio in low temperature environment, which can effectively reduce carbon emissions. It can be matched with floor heating project, which meets the national green building standard. Combined solar energyProvide you with comfortable hot water in the swimming pool, so that you can comfortably enjoy the fun of swimming in the cold season. Domestic hot waterProvide hot water for hotels, guest t officials, hospitals, bath centers and other places in an all-weather, efficient and continuous manner to solve your problem. Constant temperature of swimming pool Provide you with comfortable hot water in the swimming pool, so that you can comfortably enjoy the fun of swimming in the cold season. Intelligent control, easy operationMicrocomputer automatic control, no need for special personnel on duty, friendly all Chinese control and operation interface, system status at a glance, operation at will. Intelligent memory, comfortable to useEven if the Gree hot water unit of Hongbing series is powered off during operation, the unit will remember the operation state before power off. After power supply, it will automatically return to the original setting and restart automatically, which is more comfortable to use.

hot water unit of Hongbing series

Wide operation range The Gree hot water unit of Hongbing series adapts to a very wide climate area. It can operate normally from the plug cold zone with a temperature as low as - 26 ℃ to the tropical area with a temperature as high as 46 ℃. It can meet your hot water or heating needs and enjoy a comfortable life anytime and anywhere.

air source heat pump water heater

Energy saving pioneer, environmental protection guard environment protection Red ice series Gree air source heat pump water heater adopts a new environment-friendly refrigerant R410A, which is not suitable for chlorine that destroys the ozone layer, and the ozone attenuation index (ODP) is 0.
